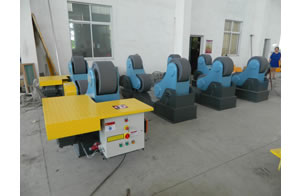

Standard Welding Rotator
Type | HGZ5 | HGZ10 | HGZ20 | HGZ30 | HGZ40 | HGZ50 | HGZ60 | HGZ80 | HGZ100 | ||
Load | 5 | 10 | 20 | 30 | 40 | 50 | 60 | 80 | 100 | ||
Wheel | Metal Wheel |
Diameter (mm) |
240 | 290 | 340 | 340 | 390 | 390 | 440 | 490 | 490 |
Width (mm) |
20 | 25 | 30 | 30 | 40 | 40 | 50 | 60 | 80 | ||
Rubber Wheel |
Diameter (mm) |
250 | 300 | 350 | 350 | 400 | 400 | 450 | 500 | 500 | |
Width (mm) |
100 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | ||
Tube body diameter |
(MIN)mm | 250 | 320 | 500 | 530 | 600 | 750 | 750 | 850 | 1000 | |
(MAX)mm | 2300 | 2800 | 3500 | 3700 | 4200 | 4500 | 4800 | 5000 | 5000 | ||
Wheel velocity(m/h) | 6-60 | 6-60 | 6-60 | 6-60 | 6-60 | 6-60 | 6-60 | 6-60 | 6-60 | ||
Power of motor | 0.75 | 1.1 | 1.5 | 2.2 | 3 | 4 | 4 | 4 | 5.5 | ||
Way of setting | Electric magnetism of frequency conversion setting |
